- (Exam Topic 2)

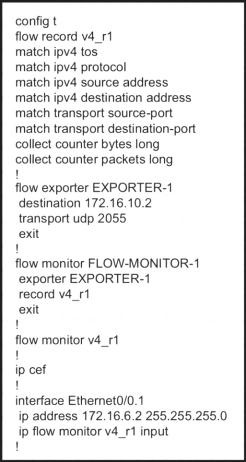

Refer to the exhibit. The remote server is failing to receive the NetFlow data Which action resolves the issue?

1. A. Modify the flow transport command transport udp 2055 to move under flow monitor profile.
2. B. Modify the interlace command to Ip flow monitor FLOW-MONITOR-1 Input.
3. C. Modify the udp port under flow exporter profile to Ip transport udp 4739.
4. D. Modify the flow record command record v4_r1 to move under flow exporter profile.

Correct Answer: B
From the exhibit we see there are two flow monitors: the first one “FLOW-MONITOR-1” has been configured correctly but the second one “v4_r1” was left empty andinterface E0/0.1 is using it. So the remote server does not receive any NetFlow data.

- (Exam Topic 2)

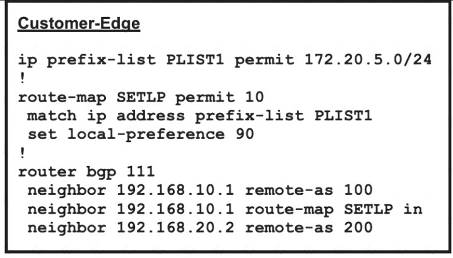

Refer to Exhibit:


AS 111 wanted to use AS 200 as the preferred path for 172.20.5.0/24 and AS 100 as the backup. After the configuration, AS 100 is not used for any other routes. Which configuration resolves the issue?

1. A. route-mmap SETLP permit 10 match ip address prefix-list PLIST1 set local-preference 99route-map SETLP permit 20
2. B. route-map SETLP permit 10match ip address prefix-list PLIST1 set local-preference 110route-map SETLP permit 20
3. C. router bgp 111no neighbor 192.168.10.1 route-map SETLP in neighbor 192.168.10.1 route-map SETLP out
4. D. router bap 111no neighbor 192.168.10.1 route-map SETLP in neighbor 192.168.20.2 route-map SE TLP in

Correct Answer: A
There is an implicit deny all at the end of any route-map so all other traffic that does not match 172.20.5.0/24 would be dropped. Therefore we have to add a permitsequence at the end of the route-map to allow other traffic.
The default value of Local Preference is 100 and higher value is preferred so we have to set the local preference of AS100 lower than that of AS200.

- (Exam Topic 3)

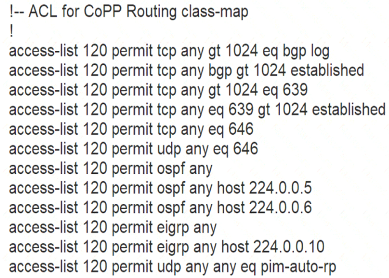

Refer to the exhibit.

The control plane is heavily impacted after the CoPP configuration is applied to the router. Which command removal lessens the impact on the control plane?

1. A. access-list 120 permit udp any any eq pim-auto-rp
2. B. access-list 120 permit eigrp any host 224.0.0.10
3. C. access-list 120 permit ospf any
4. D. access-list 120 permit tcp any gt 1024 eq bgp log

Correct Answer: A

- (Exam Topic 1)

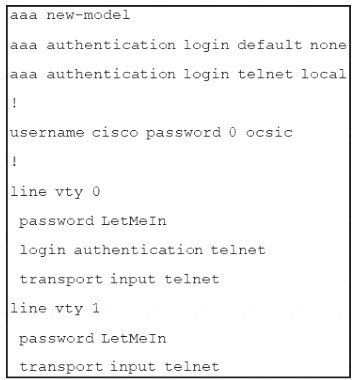

Refer to the exhibit.

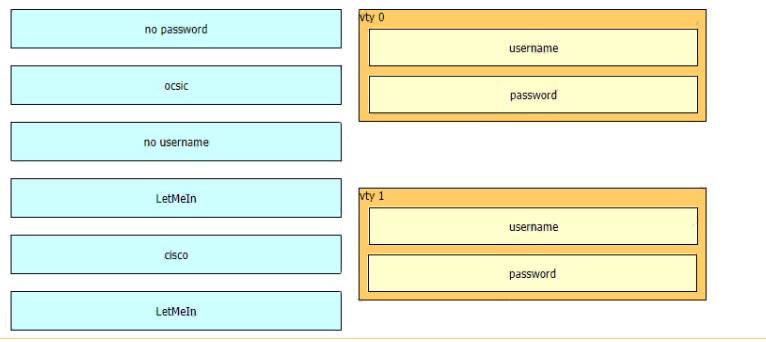

Drag and drop the credentials from the left onto the remote login information on the right to resolve a failed login attempt to vtys. Not all credentials are uf SLA by defining frequency and schedulingsed

Solution:
vty 0:
+ cisco
+ 0csic vty 1:
+ no username
+ no password
The command “aaa authentication login default none” means no authentication is required when access to the device via Console/VTY/AUX so if one interface does not specify another login authentication method (via the “login authentication …” command), it will allow to access without requiring username or password. In this case VTY 1 does not specify another authentication login method so it will use the default method (which is “none” in this case).

Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Exam Topic 1)

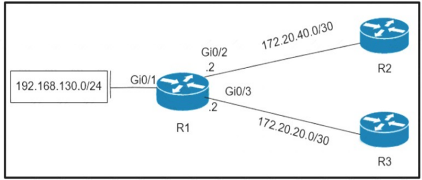

Refer to the exhibit.

Which configuration configures a policy on R1 to forward any traffic that is sourced from the 192.168.130.0/24 network to R2?

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: D
