- (Exam Topic 2)

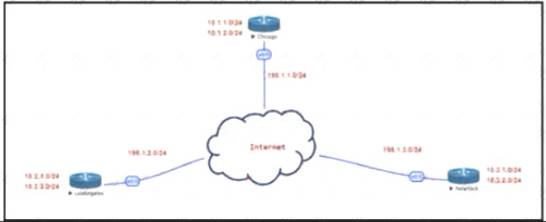

Refer to the exhibit. The Los Angeles and New York routers are receiving routes from Chicago but not from each other Which configuration fixes the issue?

1. A. Interface Tunnel1no ip split-horizon eigrp 111
2. B. Interface Tunnel1Ip next-hop-self elgrp 111
3. C. Interface Tunnel1 tunnel mode Ipsec Ipv4
4. D. Interface Tunnel1tunnel protection ipsec profile IPSec-PROFILE

Correct Answer: A
In this topology, Chicago router (Hub) will receive advertisements from Los Angeles (Spoke1) router on its tunnel interface. The problem here is that it also has a connection with New York (Spoke2) on that same tunnel interface. If we don’t disable EIGRP split-horizon, then the Hub will not relay routes from Spoke1 to Spoke2 and the other way around. That is because it received those routes on interface Tunnel1 and therefore it cannot advertise back out that same interface (splithorizon rule). Therefore we must disable split-horizon on the Hub router to make sure the Spokes know about each other.

- (Exam Topic 3)

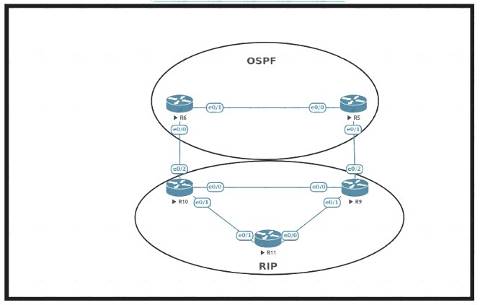

Refer to the exhibit.

An engineer must configure OSPF with R9 and R10 and configure redistribution between OSPF and RIP causing a routing loop Which configuration on R9 and R10 meets this objective?
A)

B)

C)

D)

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: A

- (Exam Topic 3)

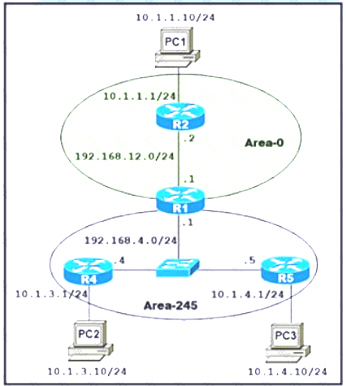

Refer to the exhibit A network administrator is troubleshooting to reduce the routing table of R4 and R5 to learn only the default route to communicate from Inter-Area and Intra-Area networks Which configuration resolves the issue?
A)

B)

C)

D)

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: D

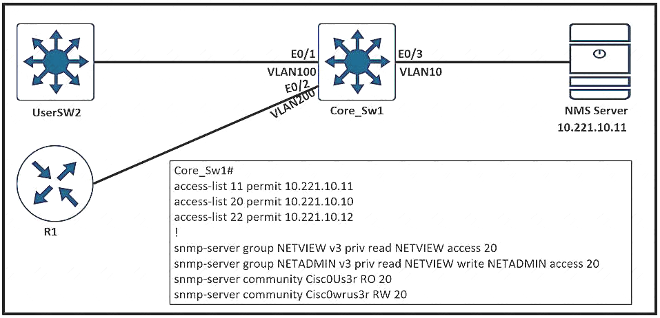

- (Exam Topic 3)

1. A. access-list 20 permit 10.221.10.12
2. B. snmp-server group NETVIEW v2c priv read NETVIEW access 20
3. C. snmp-server group NETADMIN v3 priv read NETVIEW write NETADMIN access 22
4. D. access-list 20 permit 10.221.10.11

Correct Answer: D

- (Exam Topic 2)

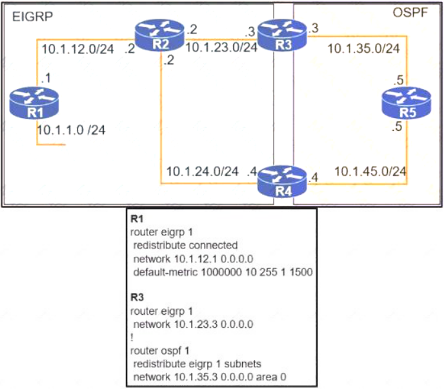

Refer to the exhibit.

To provide reachability to network 10.1.1.0 /24 from R5, the network administrator redistributes EIGRP into OSPF on R3 but notices that R4 is now taking a ........... path through R5 to reach 10.1.1.0/24 network. Which action fixes the issue while keeping the reachability from R5 to 10.1.1.0/24 network?

1. A. Change the administrative distance of the external EIGRP to 90.
2. B. Apply the outbound distribution list on R5 toward R4 in OSPF.
3. C. Change the administrative distance of OSPF to 200 on R5.
4. D. Redistribute OSPF into EIGRP on R4

Correct Answer: A
