- (Exam Topic 1)

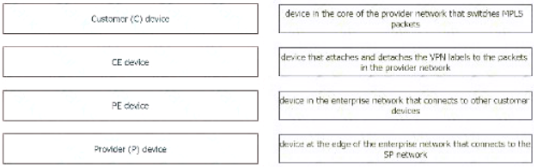

Drag and drop the MPLS VPN device types from me left onto the definitions on the right.

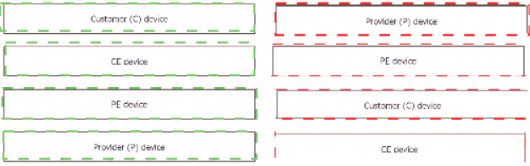

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Exam Topic 1)
Which configuration enabled the VRF that is labeled “Inet” on FastEthernet0/0?

1. A. R1(config)# ip vrf InetR1(config-vrf)#interface FastEthernet0/0 R1(config-if)#ip vrf forwarding Inet
2. B. R1(config)#router ospf 1 vrf InetR1(config-router)#ip vrf forwarding FastEthernet0/0
3. C. R1(config)#ip vrf Inet FastEthernet0/0
4. D. R1(config)# ip vrf InetR1(config-vrf)#ip vrf FastEthernet0/0

Correct Answer: A

- (Exam Topic 3)

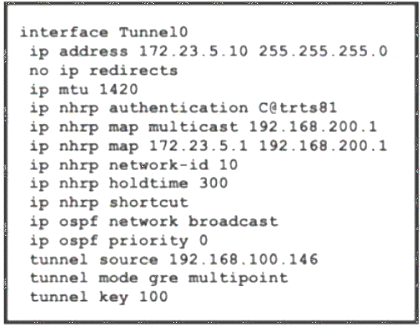

Refer to the exhibit.

A network engineer is adding a new spoke router into an existing DMVPN Phase 3 tunnel with a hub router to provide secure communication between sites Which additional configuration must the engineer apply to enable the tunnel to come up?

1. A. ip nhrp registration no-unique
2. B. ip nhrp server-only non-caching
3. C. ip nhrp responder tunnel
4. D. ip nhrpnhs 172.23.5.1

Correct Answer: D

- (Exam Topic 3)

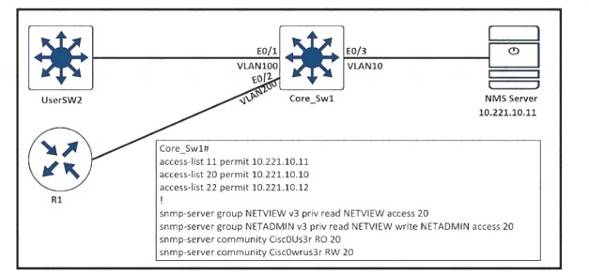

Refer to the exhibit.

An engineer configured SNMP communities on the Core_SW1, but the SNMP server cannot obtain information from Core_SW1. Which configuration resolves this issue?

1. A. snmp-server group NETVIEW v2c priv read NETVIEW access 20
2. B. access-list 20 permit 10.221.10.11
3. C. access-list 20 permit 10.221.10.12
4. D. snmp-server group NETADMIN v3 priv read NETVIEW write NETADMIN access 22

Correct Answer: B

- (Exam Topic 1)
Refer to the exhibit.

An engineer is trying to configure local authentication on the console line, but the device is trying to authenticate using TACACS+. Which action produces the desired configuration?

1. A. Add the aaa authentication login default none command to the global configuration.
2. B. Replace the capital “C” with a lowercase “c” in the aaa authentication login Console local command.
3. C. Add the aaa authentication login default group tacacs+ local-case command to the global configuration.
4. D. Add the login authentication Console command to the line configuration

Correct Answer: D
Reference:
https://community.cisco.com/t5/switching/how-to-define-login-local-for-console-0/td-p/2949493
