- (Exam Topic 3)

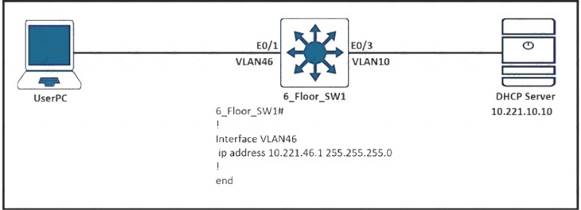

Refer to the exhibit.

Users in VLAN46 cannot get the IP from the DHCP server. Assume that all the parameters are configured properly in VLAN 10 and on the DHCP server Which command on interlace VLAN46 allows users to receive IP from the DHCP server?

1. A. ip dhcp-addreos 10.221.10.10
2. B. ip dhcp server 10.221.10.10
3. C. ip helper-addrets 10.221.10.10
4. D. ip dhcp relay information trust-all

Correct Answer: C

- (Exam Topic 3)

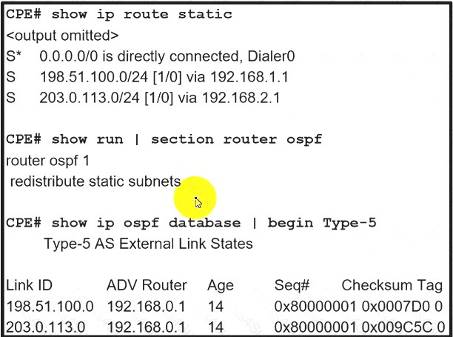

Refer to the exhibit. The default route is not advertised to the neighboring router. Which action resolves the issue?

1. A. Configure the redistribute static metric 200 subnets command under OSPF.
2. B. Configure OSPF on the Dialer0 interface.
3. C. Configure the network 0.0.0.0 255.255.255.255 area 0 command under OSPF.
4. D. Configure the default-information originate command under OSPF.

Correct Answer: D

- (Exam Topic 3)

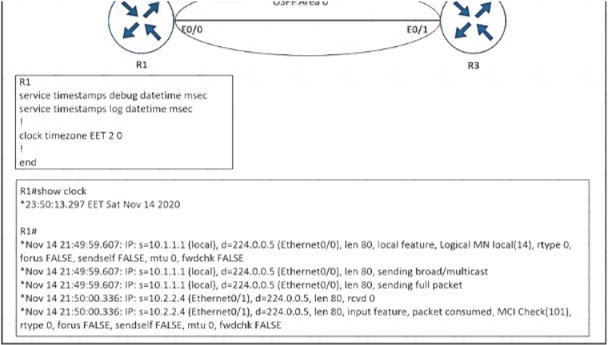

Refer to the exhibit. An engineer cannot determine the time of the problem on R1 due to a mismatch between the router local clock and legs. Which command synchronizes the time between new log entries and the local clock on R1?

1. A. service timestamps debug datetime msec show.timezone
2. B. service timestamps log datetime locatetime msec
3. C. service timestamps datebug datetime localtime msec
4. D. service timestamps log datetime msec show-timezone

Correct Answer: B

- (Exam Topic 3)

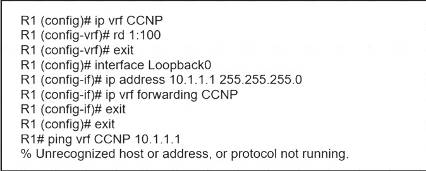

Refer to the exhibit.

Which command must be configured to make VRF CCNP work?

1. A. interface Loopback0 vrf forwarding CCNP
2. B. interface Loopback0ip address 10.1.1.1 255.255.255.0
3. C. interface Loopback0ip address 10.1.1.1 255.255.255.0 vrf forwarding CCNP
4. D. interface Loopback0ip address 10.1.1.1 255.255.255.0ip vrf forwarding CCNP

Correct Answer: B
From the exhibit, we learn that the command “ip address 10.1.1.1 255.255.255.0” has been issued before the command “ip vrf forwarding CCNP”. But the second command removed the IP address configured in the first command so we have to retype the IP address command.

- (Exam Topic 3)
What are the two reasons for RD and VPNv4 addresses in an MPLS Layer 3 VPN? (Choose two.)

1. A. RD is prepended to each prefix to make routes unique.
2. B. VPN RT communities are used to identify customer unique routes.
3. C. When the PE redistributes customer routes into MP-BGP, they must be unique.
4. D. They are on a CE device to use for static configuration.
5. E. They are used for a BGP session with the CE device.

Correct Answer: AC
