- (Exam Topic 1)

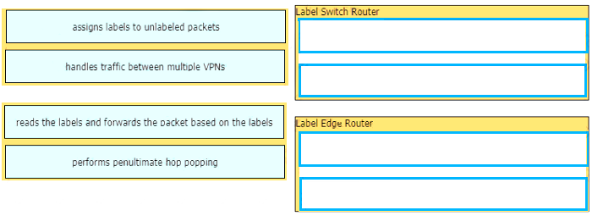

Drag and drop the operations from the left onto the locations where the operations are performed on the right.

Solution:
Label Switch Router 1. Reads labels and forwards the packet based on the based on the label.
* 2. Performs PHP
Label Edge Router: 1 Assigns labels and unlabeled packets.
* 2. Handles traffic between multiple VPNs

Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Exam Topic 3)

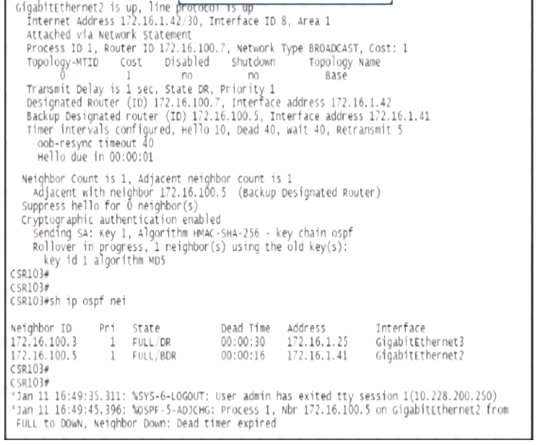

Refer to the exhibit. Which configuration resolves the issue?

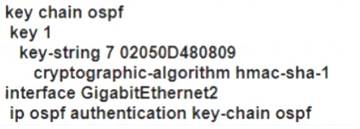

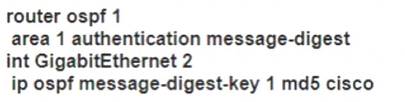

A)

B)

C)

D)

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: D

- (Exam Topic 3)

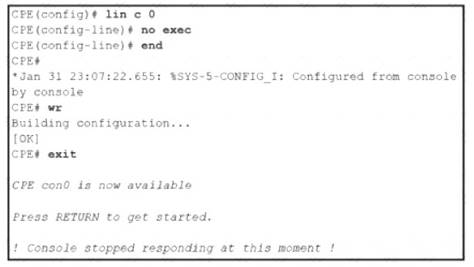

Refer to the exhibit.

An administrator is attempting to disable the automatic logout after a period of inactivity. After logging out the console stopped responding to all keyword inputs. Remote access through SSH still work resolves the issue?

1. A. Configure the exec command on line con 0.
2. B. Configure the absolute-timeout command on line con 0.
3. C. Configure the default exec-timeout command on line con 0.
4. D. Configure the no exec-timeout command on line con 0.

Correct Answer: D

- (Exam Topic 3)

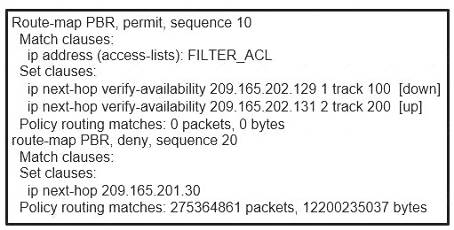

Refer to the exhibit.

An engineer has configured policy-based routing and applied the configured to the correct interface. How is the configuration applied to the traffic that matches the access list?

1. A. It is sent to 209.165.202.131.
2. B. It is sent to 209.165.202.129.
3. C. It is dropped.
4. D. It is forwarded using the routing table lookup.

Correct Answer: A
The set ip next-hop verify-availability command in route-map configuration mode to configure policy routing to verify the reachability of the next hop of a route map before the router performs policy routing to that next hop. In this question we see track 100 is down so the PBR will not use this next-hop, it will use the second next-hop with track 200 (up).

- (Exam Topic 1)

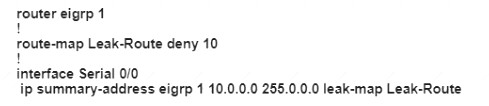

An engineer configured a leak-map command to summarize EIGRP routes and advertise specifically loopback 0 with an IP of 10.1.1.1.255.255.255.252 along with the summary route. After finishing configuration, the customer complained not receiving summary route with specific loopback address. Which two configurations will fix it? (Choose two.)

1. A. Configure access-list 1 permit 10.1.1.0.0.0.0.3.
2. B. Configure access-list 1 permit 10.1.1.1.0.0.0.252.
3. C. Configure access-list 1 and match under route-map Leak-Route.
4. D. Configure route-map Leak-Route permit 10 and match access-list 1.
5. E. Configure route-map Leak-Route permit 20.

Correct Answer: AD
When you configure an EIGRP summary route, all networks that fall within the range of your summary are suppressed and no longer advertised on the interface. Only the summary route is advertised. But if we want to advertise a network that has been suppressed along with the summary route then we can use leak-map feature. The below commands will fix the configuration in this question:
R1(config)#access-list 1 permit 10.1.1.0 0.0.0.3
R1(config)#route-map Leak-Route permit 10 // this command will also remove the “route_map Leak-Route deny 10” command.
R1(config-route-map)#match ip address 1
