- (Topic 1)
Which two functions are performed by the core layer in a three-tier architecture? (Choose two)

1. A. Provide uninterrupted forwarding service.
2. B. Police traffic that is sent to the edge of the network.
3. C. Provide direct connectivity for end user devices.
4. D. Ensure timely data transfer between layers.
5. E. Inspect packets for malicious activity.

Correct Answer: AD
Cisco is very clear about the purpose of this layer. Its only role is to forward traffic, the fastest it can. Here you don’t apply any policy, as you must try to reduce the load of the core so it can focus on routing. https://www.cisco.com/c/en/us/td/docs/solutions/Enterprise/Campus/campover.html#wp708 831

- (Topic 1)
What occurs to frames during the process of frame flooding?

1. A. Frames are sent to every port on the switch in the same VLAN except from the originating port
2. B. Frames are sent to every port on the switch that has a matching entry in the MAC address table.
3. C. Frames are sent to all ports, including those that are assigned to other VLANs.
4. D. Frames are sent to every port on the switch in the same VLAN.

Correct Answer: A

- (Topic 1)
What is the function of a controller in controller-based networking?

1. A. It serves as the centralized management point of an SDN architecture.
2. B. It centralizes the data plane for the network.
3. C. It is the card on a core router that maintains all routing decisions for a campus.
4. D. It is a pair of core routers that maintain all routing decisions for a campus

Correct Answer: A

- (Topic 2)

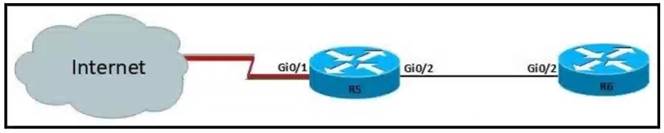

Refer to the exhibit.

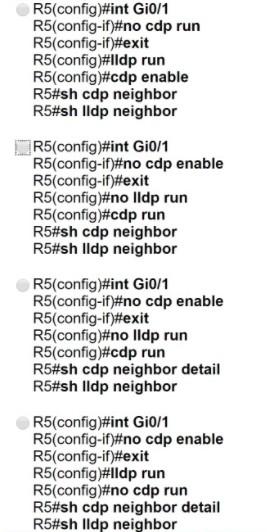

For security reasons, automatic neighbor discovery must be disabled on the R5 Gi0/1 interface. These tasks must be completed:
• Disable all neighbor discovery methods on R5 interface GiO/1.
• Permit neighbor discovery on R5 interface GiO/2.
• Verify there are no dynamically learned neighbors on R5 interface Gi0/1.
• Display the IP address of R6*s interface Gi0/2. Which configuration must be used?

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: C

- (Topic 3)

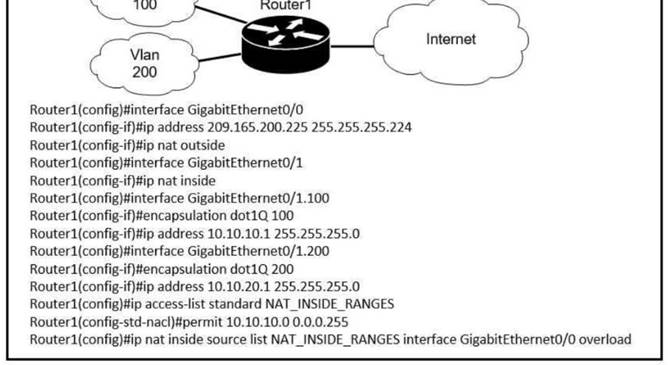

Refer to the exhibit.

Users on existing VLAN 100 can reach sites on the Internet. Which action must the administrator take to establish connectivity to the Internet for users in VLAN 200?

1. A. Define a NAT pool on the router.
2. B. Configure static NAT translations for VLAN 200.
3. C. Configure the ip nat outside command on another interface for VLAN 200.
4. D. Update the NAT INSIDF RANGFS ACL

Correct Answer: B
