DRAG DROP - (Topic 4)

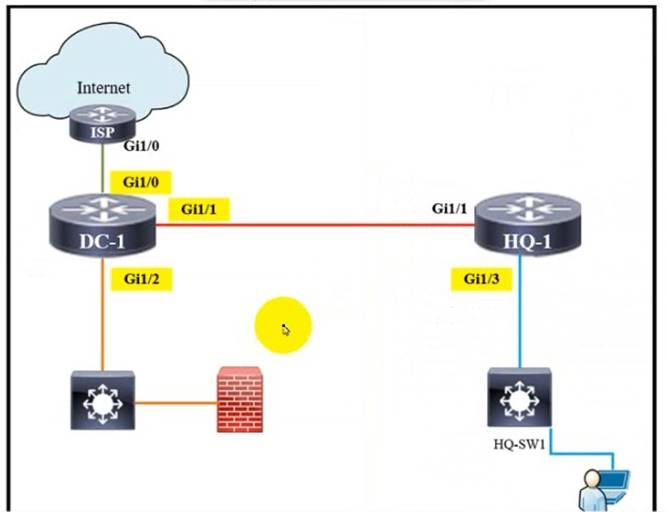

Refer to Exhibit.

Rotor to the exhibit. The IP address configurations must be completed on the DC-1 and HQ-1 routers based on these requirements:
DC-1 Gi1/0 must be the last usable address on a /30 DC-1 Gi1/1 must be the first usable address on a /29 DC-1 Gi1/2 must be the last usable address on a /28 HQ-1 Gil/3 must be the last usable address on a /29

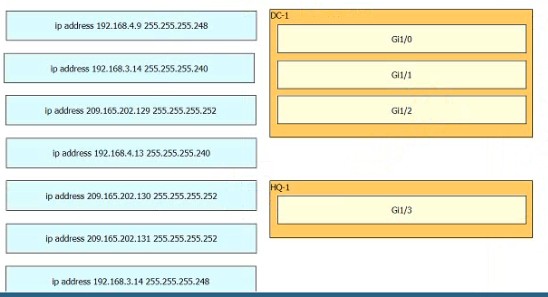

Drag and drop the commands from the left onto the destination interfaces on the right. Not all commands are used

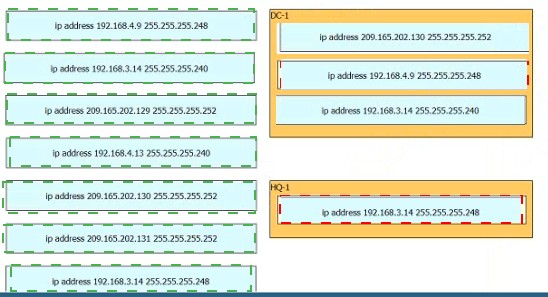

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Topic 4)
What is the purpose of the Cisco DNA Center controller?

1. A. to secure physical access to a data center
2. B. to scan a network and generate a Layer 2 network diagram
3. C. to securely manage and deploy network devices
4. D. to provide Layer 3 services to autonomous access points

Correct Answer: C

- (Topic 4)
Refer to the exhibit. Local access for R4 must be established and these requirements must be met:
• Only Telnet access is allowed.
• The enable password must be stored securely.
• The enable password must be applied in plain text.

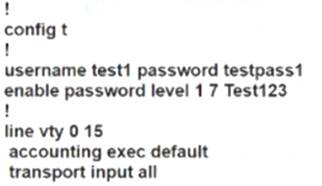

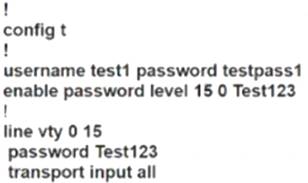

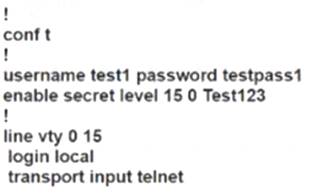

• Full access to R4 must be permitted upon successful login. Which configuration script meets the requirements?
A)

B)

C)

D)

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: D

- (Topic 4)

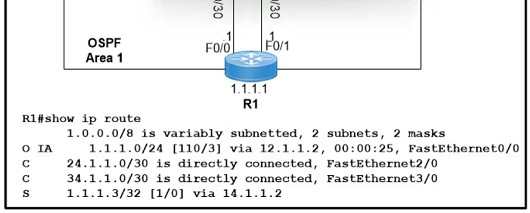

Refer to the exhibit.

Which two values does router R1 use to determine the best path to reach destinations in network 1,0.0.0/8? (Choose two.)

1. A. longest prefix match
2. B. highest administrative distance
3. C. highest metric
4. D. lowest metric
5. E. lowest cost to reach the next hop

Correct Answer: AD

- (Topic 4)

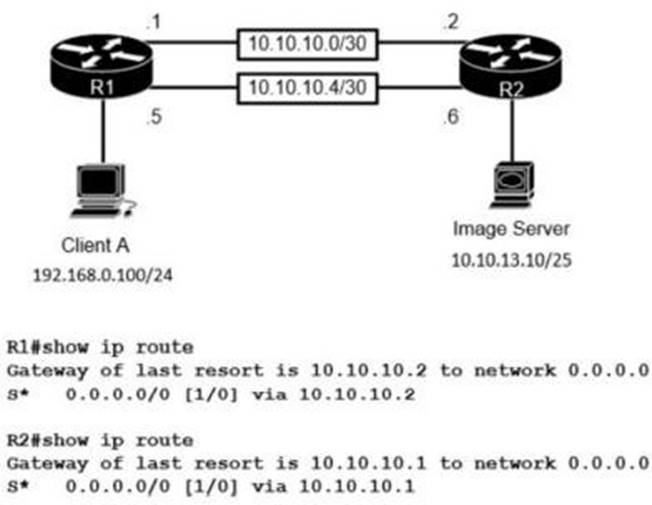

Refer to the exhibit.

The image server and client A are running an application that transfers an extremely high volume of data between the two. An engineer is configuring a dedicated circuit between R1 and R2. Which set of commands must the engineer apply to the routers so that only traffic between the image server and client A is forces to use the new circuit?

1. A. R1(config)#ip route 10.10.13.10 255.255.255.255 10.10.10.6R2(config)#ip route 192.168.0.100 255.255.255.255 10.10.10.5
2. B. R1(config)#ip route 10.10.13.10 255.255.255.128 10.10.10.6R2(config)#lp route 192.168.0.100 255.255.255.0 10.10.10.5
3. C. R1(config)#ip route 10.10.13.10 255.255.255.252 10.10.10.6R2(config)#tp route 192.168.0.100 255.255.255.252 10.10.10.5
4. D. R1(config)#ip route 10.10.13.10 255.255.255.255 10.10.10.2R2(config)#ip route 192.168.0.100 255.255.255.255 10.10.10.1

Correct Answer: D
