- (Topic 1)
In software defined architectures, which plane is distributed and responsible for traffic forwarding?

1. A. management plane
2. B. control plane
3. C. policy plane
4. D. data plane

Correct Answer: D

DRAG DROP - (Topic 4)

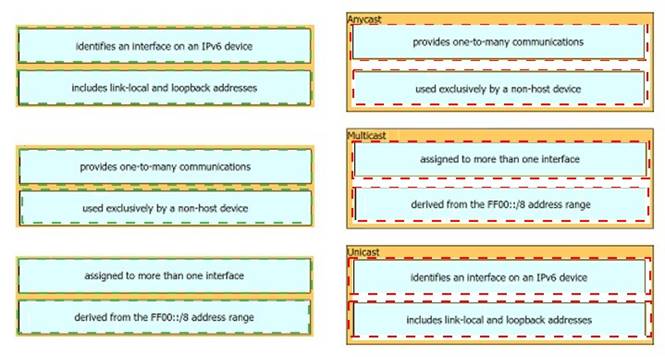

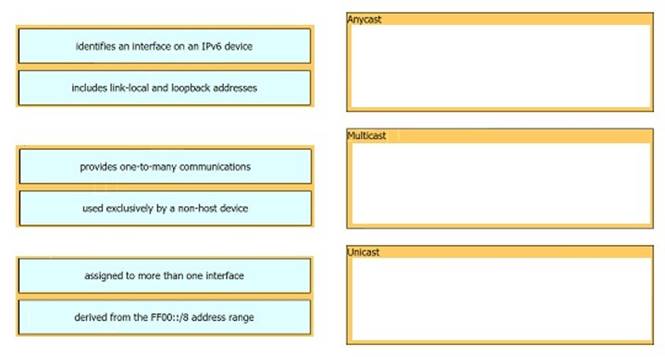

Drag and drop the IPv6 address details from the left onto the corresponding types on the right.

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Topic 1)
A port security violation has occurred on a switch port due to the maximum MAC address count being exceeded. Which command must be configured to increment the security- violation count and forward an SNMP trap?

1. A. switchport port-security violation access
2. B. switchport port-security violation protect
3. C. switchport port-security violation restrict
4. D. switchport port-security violation shutdown

Correct Answer: C
https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst4500/12-2/25ew/configuration/guide/conf/port_sec.html

- (Topic 4)
Which enhancement is implemented in WPA3?

1. A. applies 802.1x authentication
2. B. usesTKIP
3. C. employs PKI to identify access points
4. D. protects against brute force attacks

Correct Answer: D

- (Topic 4)

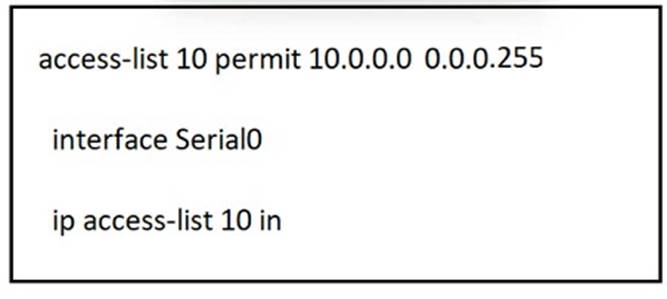

Refer to the exhibit.

A network administrator must permit traffic from the 10.10.0.0/24 subnet to the WAN on interlace Seria10. What is the effect of the configuration as the administrator applies the command?

1. A. The permit command fails and returns an error code.
2. B. The router accepts all incoming traffic to Seria10 with the last octet of the source IP set to 0.
3. C. The sourced traffic from IP range 10.0.0.0 -10.0.0.255 is allowed on Seria10.
4. D. The router fails to apply the access list to the interface.

Correct Answer: C
