- (Topic 4)
What is the advantage of separating the control plane from the data plane within an SDN network?

1. A. decreases overall network complexity
2. B. limits data queries to the control plane
3. C. reduces cost
4. D. offloads the creation of virtual machines to the data plane

Correct Answer: A

- (Topic 4)

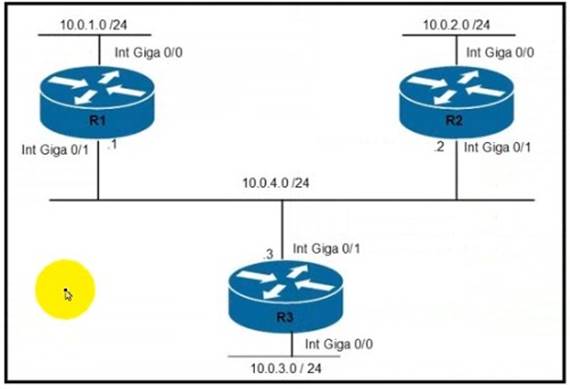

Refer to the exhibit.

Router R1 must be configured to reach the 10.0.3.0/24 network from the 10.0.1.0/24 segment.
Which command must be used to configure the route?

1. A. ip route 10.0.3.0 0.255255.255 10.0.4.2
2. B. route add 10.0.3.0 mask 255.255.255.0 10.0.4.3
3. C. Ip route 10.0.3.0 255.255.255.0 10.0.4.3
4. D. route add 10.0.3.0 0.255.255.255 10.0.4.2

Correct Answer: C

- (Topic 2)
Which command must be entered to configure a DHCP relay?

1. A. ip helper-address
2. B. ip address dhcp
3. C. ip dhcp pool
4. D. ip dhcp relay

Correct Answer: A

DRAG DROP - (Topic 4)

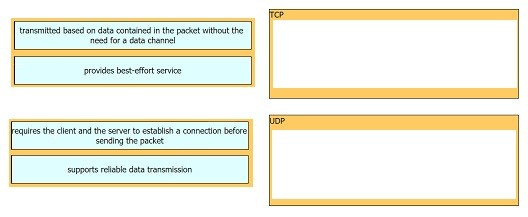

Drag and drop the TCP or UDP details from the left onto their corresponding protocols on the right.

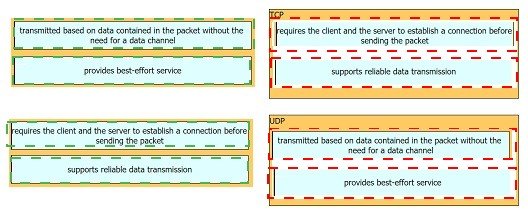

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Topic 2)

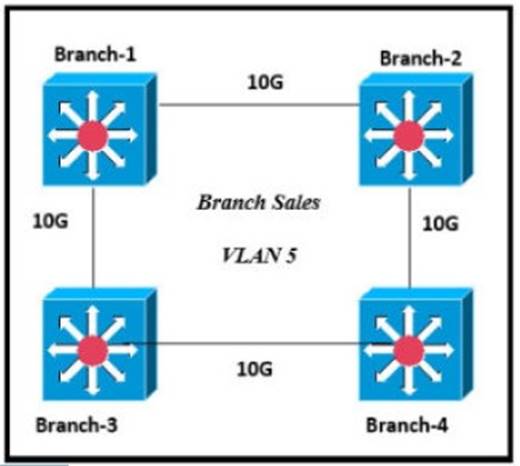

Refer to the exhibit.

Only four switches are participating in the VLAN spanning-tree process.
Branch-1 priority 614440
Branch-2: priority 39082416
Branch-3: priority 0 Branch-4: root primary
Which switch becomes the permanent root bridge for VLAN 5?

1. A. Branch-1
2. B. Branch-2
3. C. Branch-3
4. D. Branch-4

Correct Answer: C
Dynamic ARP inspection is an ingress security feature; it does not perform any egress checking.
