- (Topic 2)
How does CAPWAP communicate between an access point in local mode and a WLC?

1. A. The access point must directly connect to the WLC using a copper cable
2. B. The access point must not be connected to the wired network, as it would create a loop
3. C. The access point must be connected to the same switch as the WLC
4. D. The access point has the ability to link to any switch in the network, assuming connectivity to the WLC

Correct Answer: D

- (Topic 1)
What is a difference between local AP mode and FiexConnet AP mode?

1. A. Local AP mode creates two CAPWAP tunnels per AP to the WLC
2. B. FiexConnect AP mode fails to function if the AP loses connectivity with the WLC
3. C. FlexConnect AP mode bridges the traffic from the AP to the WLC when local switching is configured
4. D. Local AP mode causes the AP to behave as if it were an autonomous AP

Correct Answer: A

- (Topic 1)
Router R1 must send all traffic without a matching routing-table entry to 192.168.1.1. Which
configuration accomplishes this task?

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: C

- (Topic 4)
What is a function of an endpoint?

1. A. It is used directly by an individual user to access network services
2. B. It passes unicast communication between hosts in a network
3. C. It transmits broadcast traffic between devices in the same VLAN
4. D. It provides security between trusted and untrusted sections of the network.

Correct Answer: A

- (Topic 4)
Refer to the exhibit.

How must OSPF be configured on the GigabitEthernet0/0 interface of the neighbor device to achieve.

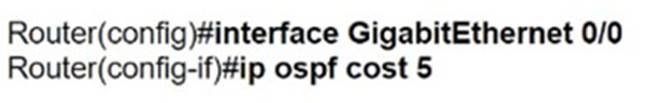

A)

B)

C)

D)

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: A
