- (Topic 1)
An engineer needs to add an old switch back into a network. To prevent the switch from corrupting the VLAN database which action must be taken?

1. A. Add the switch in the VTP domain with a lower revision number
2. B. Add the switch with DTP set to dynamic desirable
3. C. Add the switch in the VTP domain with a higher revision number
4. D. Add the switch with DTP set to desirable

Correct Answer: A

- (Topic 4)
Which interface or port on the WLC is the default for in-band device administration and communications between the controller and access points?

1. A. virtual interface
2. B. management interface
3. C. console port
4. D. service port

Correct Answer: B

- (Topic 4)

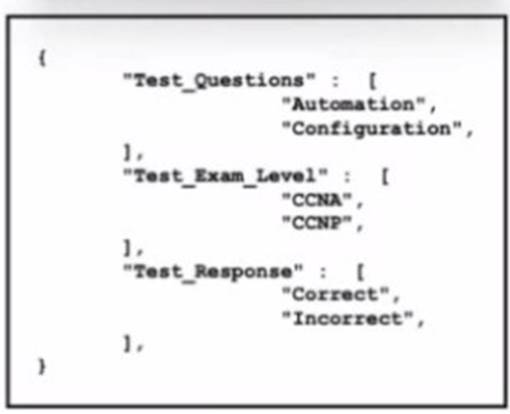

Refer to the exhibit.

How many objects, Keys and JSON list values are present?

1. A. three objects, two Keys, and three JSON list values
2. B. three objects, three keys and two JSON Ml values
3. C. one object, three keys, and three JSON list values
4. D. one object, three keys and two JSON list values

Correct Answer: C

- (Topic 1)
Which statement identifies the functionality of virtual machines?

1. A. Virtualized servers run most efficiently when they are physically connected to a switch that is separate from the hypervisor
2. B. The hypervisor can virtualize physical components including CP
3. C. memory, and storage
4. D. Each hypervisor can support a single virtual machine and a single software switch
5. E. The hypervisor communicates on Layer 3 without the need for additional resources

Correct Answer: B

- (Topic 3)

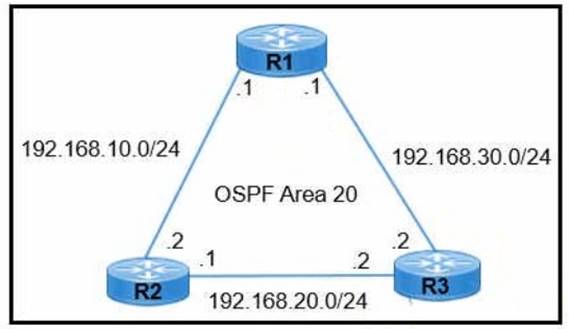

Refer to the exhibit.

R1 learns all routes via OSPF Which command configures a backup static route on R1 to reach the 192 168.20.0/24 network via R3?

1. A. R1(config)#ip route 192.168.20.0 255.255.0.0 192.168.30.2
2. B. R1(config)#ip route 192.168.20.0 255.255.255.0 192.168.30.2 90
3. C. R1(config)#ip route 192.168.20.0 255.255.255.0 192.168.30.2 111
4. D. R1(config)#ip route 192.168.20.0 255.255.255.0 192.168.30.2

Correct Answer: C
