- (Topic 3)
What are two benefits of FHRPs? (Choose two.)

1. A. They enable automatic failover of the default gateway.
2. B. They allow multiple devices to serve as a single virtual gateway for clients in the network.
3. C. They are able to bundle multiple ports to increase bandwidth.
4. D. They prevent loops in the Layer 2 network.
5. E. They allow encrypted traffic.

Correct Answer: AB

- (Topic 3)
A network administrator is setting up a new IPv6 network using the 64-bit address 2001 0EB8 00C1 2200:0001 0000 0000 0331/64 To simplify the configuration the administrator has decided to compress the address Which IP address must the administrator configure?

1. A. ipv6 address 21:EB8:C1:2200:1::331/64
2. B. ipv6 address 2001:EB8:C1:22:1::331/64
3. C. ipv6 address 2001 :EB8:C 1:2200.1 ::331-64
4. D. ipv6 address 2001:EB8:C1:2200:1:0000:331/64

Correct Answer: C

DRAG DROP - (Topic 2)
Refer to the exhibit.

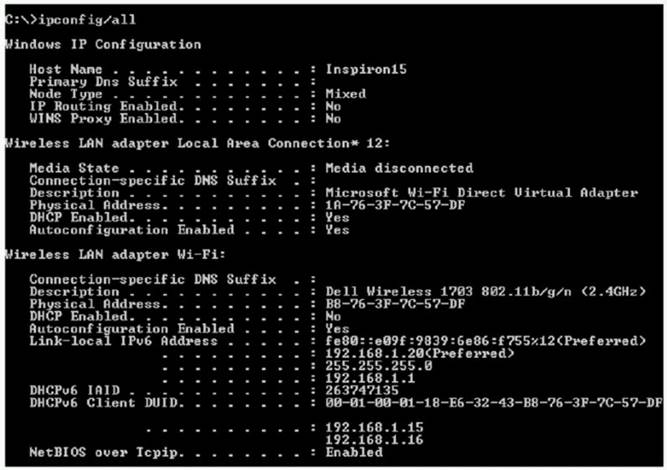

An engineer is required to verify that the network parameters are valid for the users wireless LAN connectivity on a /24 subnet. Drag and drop the values from the left onto the network parameters on the right. Not all values are used.

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

DRAG DROP - (Topic 3)

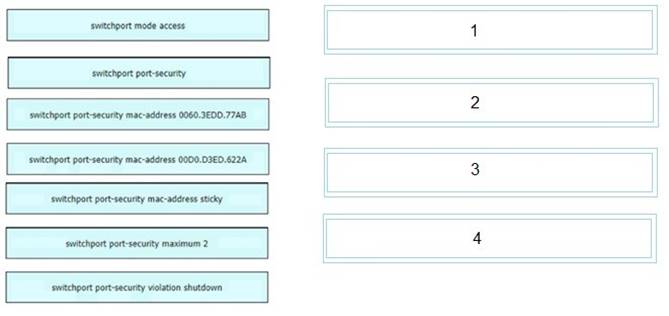

An engineer is tasked to configure a switch with port security to ensure devices that forward unicasts multicasts and broadcasts are unable to flood the port The port must be configured to permit only two random MAC addresses at a time Drag and drop the required configuration commands from the left onto the sequence on the right Not all commands are used.

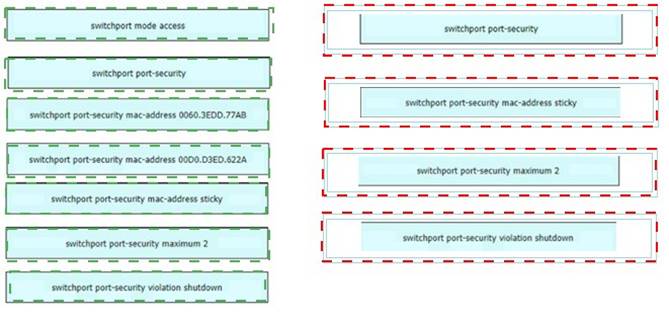

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Topic 3)
Which action is taken by the data plane within a network device?

1. A. forwards traffic to the next hop
2. B. constructs a routing table based on a routing protocol
3. C. provides CLI access to the network device
4. D. looks up an egress interface in the forwarding information base

Correct Answer: A
