- (Topic 1)

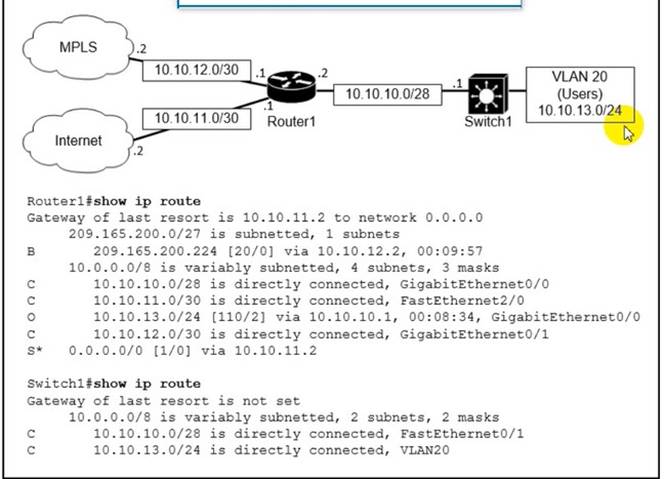

Refer to the exhibit.

which path is used by the router for internet traffic ?

1. A. 209.165.200.0/27
2. B. 10.10.10.0/28
3. C. 0.0.0.0/0
4. D. 10.10.13.0/24

Correct Answer: C

- (Topic 2)
R1 has learned route 192.168.12.0/24 via IS-IS. OSPF, RIP. and Internal EIGRP Under normal operating conditions, which routing protocol is installed in the routing table?

1. A. IS-IS
2. B. RIP
3. C. Internal EIGRP
4. D. OSPF

Correct Answer: C

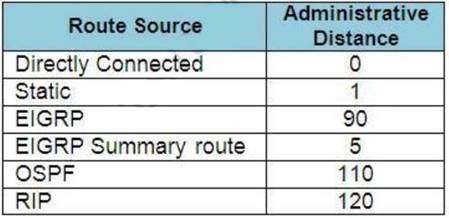

With the same route (prefix), the router will choose the routing protocol with lowest Administrative Distance (AD) to install into the routing table. The AD of Internal EIGRP (90) is lowest so it would be chosen. The table below lists the ADs of popular routing protocols.

Dumps Full Questions - Exam Study Guide & Free 203
CCNA 200-301
Note: The AD of IS-IS is 115. The “EIGRP” in the table above is “Internal EIGRP”. The AD of “External EIGRP” is 170. An EIGRP external route is a route that was redistributed into EIGRP.

- (Topic 2)
What is a characteristic of spine-and-leaf architecture?

1. A. Each device is separated by the same number of hops
2. B. It provides variable latency
3. C. It provides greater predictability on STP blocked ports.
4. D. Each link between leaf switches allows for higher bandwidth.

Correct Answer: A

- (Topic 2)
A network engineer must create a diagram of a multivendor network. Which command must be configured on the Cisco devices so that the topology of the network can be mapped?

1. A. Device(Config)#lldp run
2. B. Device(Config)#cdp run
3. C. Device(Config-if)#cdp enable
4. D. Device(Config)#flow-sampler-map topology

Correct Answer: A

DRAG DROP - (Topic 4)

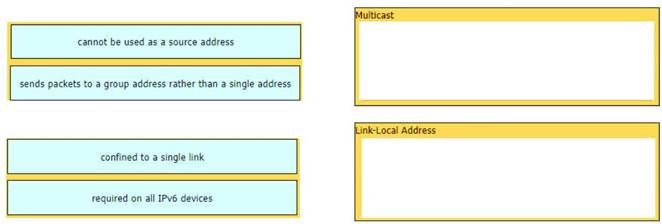

Drag and drop the characteristic from the left onto the IPv6 address type on the right.

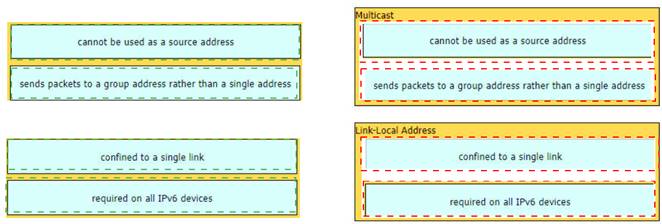

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A
