- (Topic 4)

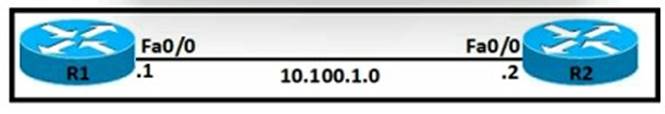

Refer to the exhibit.

An OSPF neighbor relationship must be configured using these guidelines:
• R1 is only permitted to establish a neighbor with R2
• R1 will never participate in DR elections
• R1 will use a router-id of 101.1.1. Which configuration must be used?

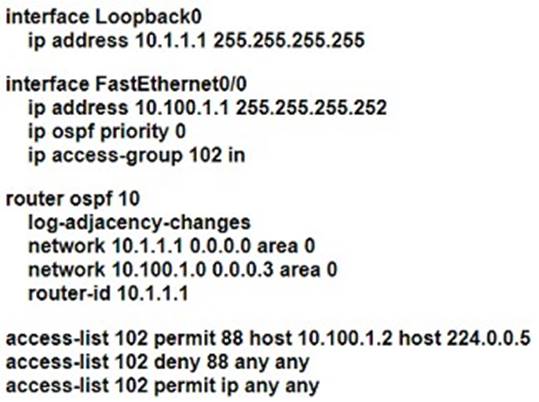

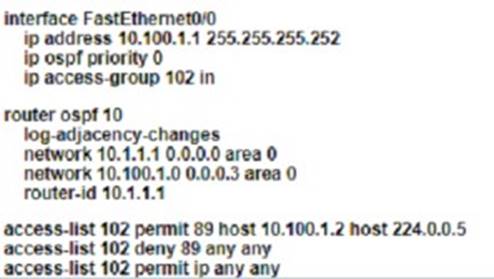

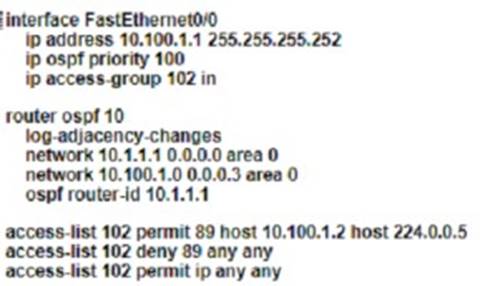

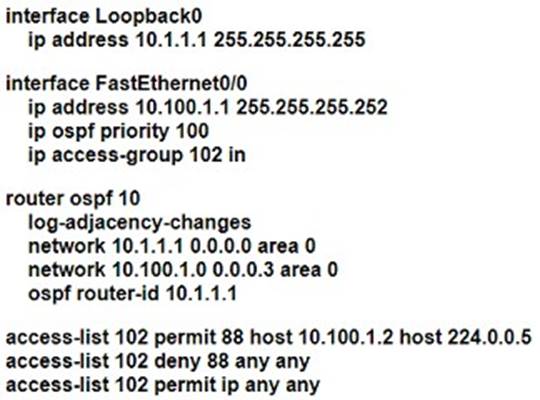

A)

B)

C)

D)

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: C

- (Topic 4)
Refer to the exhibit.

Which IP route command created the best path for a packet destined for 10.10.10.3?

1. A. ip route 10.10.0.0 255.255.252.0 g0/0
2. B. ip route 10.0.0.0 255.0.0.0 g0/0
3. C. ip route 10.10.10.1 255.255.255.255 g0/0
4. D. ip route 10.10.10.0 255.255.255.240 g0/0

Correct Answer: D

- (Topic 1)
Several new coverage cells are required to improve the Wi-Fi network of an organization. Which two standard designs are recommended? (choose two.)

1. A. 5GHz provides increased network capacity with up to 23 nonoveriapping channels.
2. B. For maximum throughput, the WLC is configured to dynamically set adjacent access points to the same channel.
3. C. 5GHz channel selection requires an autonomous access point.
4. D. Adjacent cells with overlapping channels use a repeater access point.
5. E. Cells that overlap one another are configured to use nonoveriapping channels.

Correct Answer: BE

- (Topic 4)
Which two practices are recommended for an acceptable security posture in a network? (Choose two)

1. A. Backup device configurations to encrypted USB drives for secure retrieval
2. B. maintain network equipment in a secure location
3. C. Use a cryptographic keychain to authenticate to network devices
4. D. Place internal email and file servers in a designated DMZ
5. E. Disable unused or unnecessary ports, interfaces and services

Correct Answer: CE

- (Topic 1)

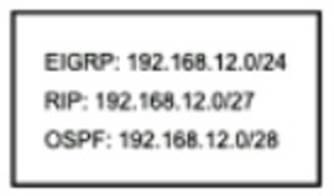

Refer to the exhibit.

How does the router manage traffic to 192.168.12.16?

1. A. It selects the RIP route because it has the longest prefix inclusive of the destination address.
2. B. It chooses the OSPF route because it has the longest prefix inclusive of the destination address.
3. C. it load-balances traffic between all three routes
4. D. It chooses the EIGRP route because it has the lowest administrative distance

Correct Answer: A
