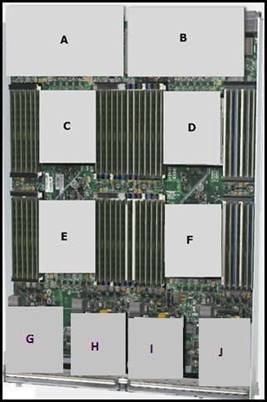

Refer to the exhibit.

Where is the best place to see the power supply status of the blade server enclosure?

1. A. A - Chassis 1
2. B. B - Chassis 1 - PSUs
3. C. C - Chassis1 - Servers
4. D. D - Rack-Mounts - Servers
5. E. E - Fabric Interconnects A - PSUs

Correct Answer: B

Which two statements about PCIe are true? (Choose two.)

1. A. The PCIe link is built around dedicated unidirectional couples of serial, point-to-point connections known as lane
2. B. You can install a PCI Express x8 adapter into an x4 slo
3. C. The PCIe standard is a bus-based system in which all the devices share the same bidirectional, 32-bit or 64-bit, parallel signal pat
4. D. The PCIe 1.0 standard doubles the transfer rate compared to PCIe 2.0.
5. E. A link that is composed of four lanes is called an x4 lin

Correct Answer: AE

To do a password recovery on a Cisco NX-OS Switch, which option shows the correct syntax to display the bootflash contents at the switch(boot)#?

1. A. display bootflash:
2. B. show bootflash:
3. C. dir bootflash:
4. D. find bootflash:

Correct Answer: C

DRAG DROP

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

What is the correct path to verify the Overall Status of Chassis 1 | Server 3?

1. A. Equipment Tab > Chassis > Chassis 1 > Servers > Server 3 Status tab
2. B. Equipment Tab > Chassis > Chassis 1 > Servers > Server 3 General tab
3. C. Equipment Tab > Chassis > Chassis 1 > Servers > Server 3 FSM tab
4. D. Servers Tab > Chassis > Server 3 General tab
5. E. Status Tab > Chassis > Chassis 1 > Servers > Server 3
6. F. Admin Tab > Chassis > Chassis 1 > Servers > Server 3 General tab

Correct Answer: B
